Three-dimensional Universal Swing Device

Publishdate:2019-07-22 Views:149

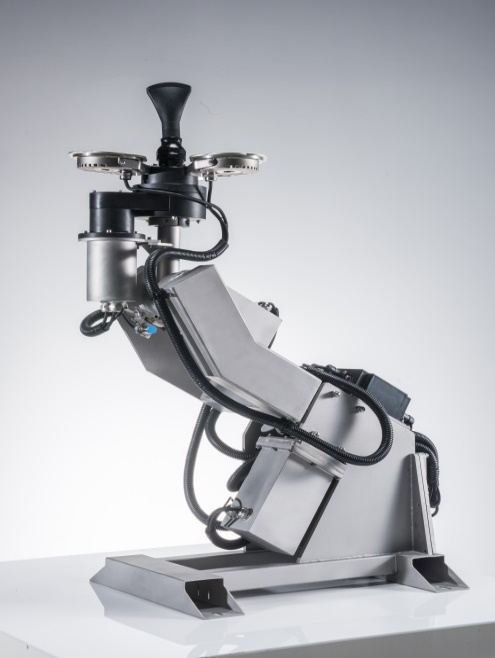

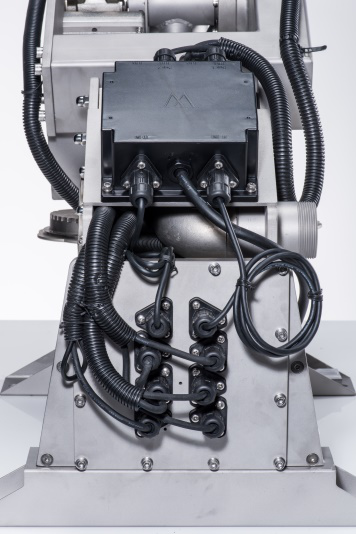

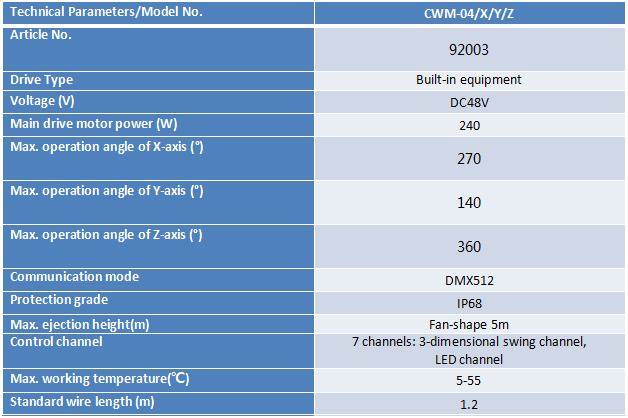

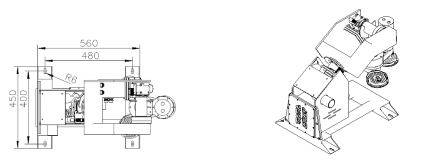

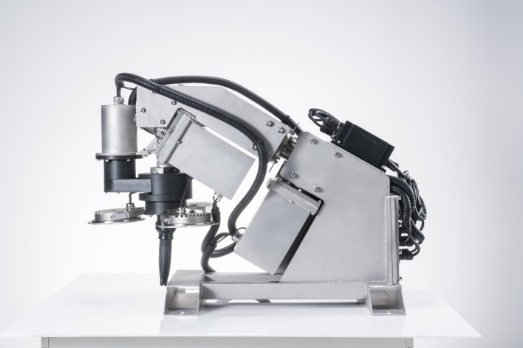

CWM series universal swing device has three rotating axes, X-axis,   Y-axis and Z-axis. Through the simultaneous rotations of X-axis and Y-axis or combinations of independently rotating X-axis and Y-axis, ejection nozzles carry the spouts to swing freely within the space defined by the two axes; The Z-axis allows the nozzle to rotate 360° around the Z-axis, with rotating speed and direction adjustable freely (especially suitable for fan-shape pattern); the swinging and rotation of three axes are controlled by servo displacement technology freely at any direction.

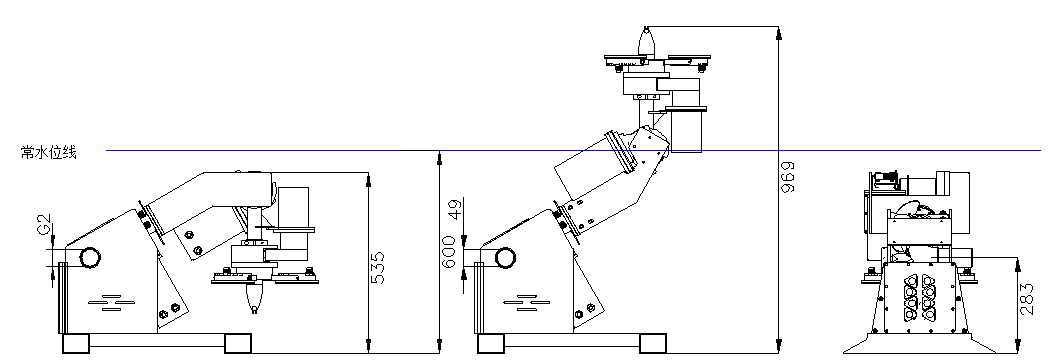

The nozzle is featured with reasonable structure, perfect mechanical balance, high stability and replaceable and maintainable spare parts; and the stainless steel structure can be totally disassembled; The X-axis can rotate 270°, making it possible for the nozzle and mechanical base being submerged under the water surface when it is not working, so that the overall aesthetics of large-scale music fountain can be ensured.
