One-dimensional Universal Swing Device

Publishdate:2019-07-22 Views:3981

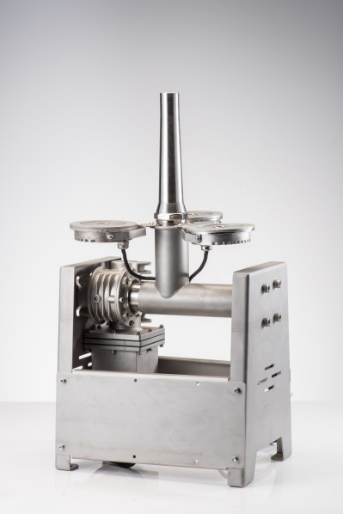

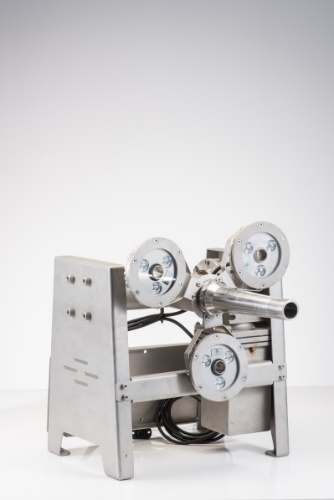

CWM series one-dimensional universal mechanical swing device has an X-axis. Through the combinations of rotating X-axis, ejection nozzles carry the spouts to regulate speed and swing freely on both sides of 180 degrees in one-dimensional space, so the speed and direction can be adjusted freely, and the nozzles can accurately adjust speed and direction through servo displacement technology.

The nozzle is featured with reasonable structure, perfect mechanical balance, high stability and replaceable and maintainable spare parts; and the stainless steel structure can be totally disassembled; The X-axis can rotate 180°, making it possible for the nozzle and mechanical base being submerged under the water surface when it is not working, so that the overall aesthetics of large-scale music fountain can be ensured.

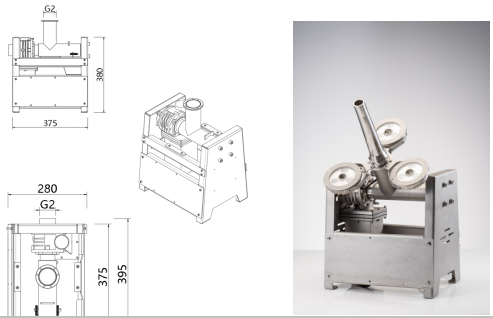

Data download(CAD)
