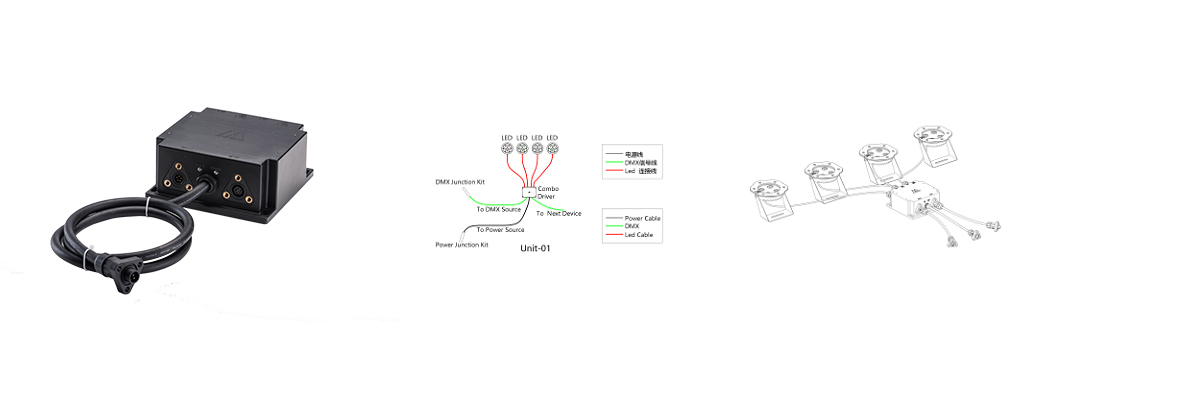

LED-RGB Lamp Driver
●Product Features
DC low-voltage 24V, conforming to international safety specifications.
Overtemperature and power supply reverse connection protection.
Standard DMX512 signal control, 3 channels available
Smooth and linear drive control.
Support hand-in-hand DMX address writing function.
Conforming to IP68 waterproofing specifications, with patented waterproofing connector.
LED lamp driver, with patented waterproof connectors.
●Product Specifications
Dimension: 125*125*75mm
Overall energy consumption: 64W
Working voltage: DC 24V
Material: plastic, stainless steel screws
Working temperature: 4-35°C
DMX512 channel: 3 (LED- R, G, B) (support hand-in-hand DMX address writing function)
Waterproof plug-in point: power supply input, DMX signal input and output
LED 4-channel output
|
CWQ-M-02/DMX LED lamp driver (1 driver for 4 lamps) |
Article No.:41002 |
|
|
DMX channel configuration |
||
|
Channel |
Functional descriptio |
Values/Functions |
|
CH03 |
LED red brightness (R) |
0-255 |
|
CH04 |
LED green brightness (G) |
0-255 |
|
CH05 |
LED blue brightness (B) |
0-255 |
