Variable Speed Pump Driver
●Product Features
DC low-voltage 24V, conforming to international safety specifications.
Overtemperature and power supply reverse connection protection.
Standard DMX512 signal control, two channels available
Smooth and linear drive control.
Support hand-in-hand DMX address writing function.
Conforming to IP68 waterproofing specifications, with patented waterproofing connector.
Equipped with patented waterproof connectors.
●Product Specifications
Dimension: 125*125*75mm
Overall energy consumption: 240W
Working voltage: DC 24V
Wire length: 1.2 m waterproof rubber cabl
Working temperature: 4-35°C
DMX512 channel: 2 (on/off, speed) (support hand-in-hand DMX address writing function)
Plug-in point: power supply input, DMX signal input and output Pump output
|

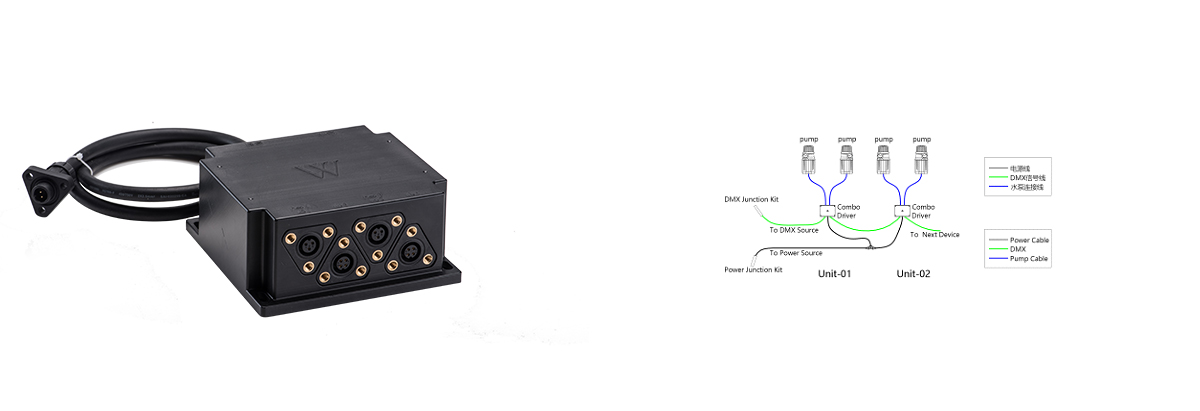

CWQ-M-01/DMX Low-voltage variable speed pump driver (one driver for two pumps) |
Article No.:41001 |
|
|
DMX channel configuration |
||
|
Channel |
Functional description |
Values/Functions |
|
CH01 |
Control the startup/shutdown of the pump |
0-49/shutdown |
|
50-99/startup |
||
|
100-255/shutdown |
||
|
CH02 |
Speed control |
0-255 regulation |
