Air Nozzles
●Product Features
Pneumatic drive, energy conservation and environmental protection
Standard DMX512 signal control, DC 24V solenoid valve, safe DC power supply.
External split-type actuator, with patented waterproofing joints
Natural water inlet, suitable for different sizes of nozzles
Conforming to IP68 waterproofing code
●Product Specifications
Dimension:Ф323*691mm
Energy consumption: 24W solenoid valve
Working voltage: DC 24V
Max. working pressure:12.0Mpa
Material: stainless steel (SUS 304)
Cable length: 1.2 m waterproof rubber cable, with IP68 special connector
Working temperature: 4~55℃11
CWA series air blast gap nozzles are supplied with water naturally through a one-way valve; and they have quick response and strong cooperation with musical rhythms; majestic and grand water patterns can be formed by various combinations of these nozzles.The equipment are featured with reasonable structure, perfect mechanical balance, high stability and replaceable and maintainable spare parts; and the stainless steel structure can be totally disassembled.
|

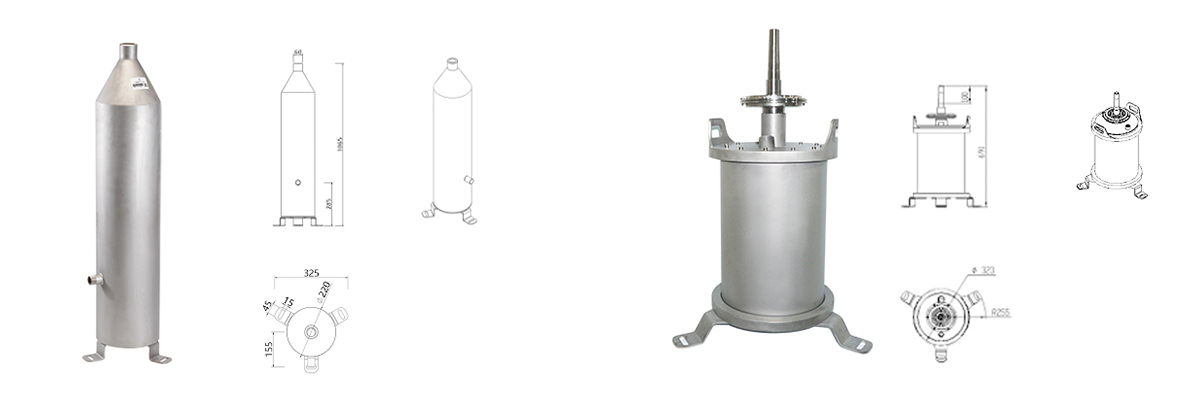

Technical Parameters/Model No. |
CWA-AIR01 |
CWA-AIR02 |
|
Article No. |
93001 |
93002 |
|
Drive Type |
External |
|
|
Voltage (V) |
DC24 |
|
|
Power of solenoid valve (W) |
80 |
110 |
|
Communication mode |
DMX512 |
|
|
Protection grade |
IP68 |
|
|
Max. ejection height(m) |
15 |
25 |
|
Max. working temperature(℃) |
5-37 |
|
|
Standard wire length (m) |
12 |
|
|
Working depth (m) |
1.0 |
|
|
Weight(kg) |
25 |
38 |
|
Nozzle caliber (inch) |
11/2 |
|
|
Overall dimensions(mm) |
691xФ323 |
1065xФ220 |
