Jumping Water Drops Nozzle
Publishdate：2018-11-26 Views：4619
Jumping Water Drops Nozzle
●Product Specifications
Material: tempered glass/stainless steel (SUS 304)
Pattern: Jumping water drops
Jumping frequency: 15 times/minute
Adjustable angle: ±15°
Ejection height: 0.3-1.5m
Working voltage: 24V
Cable length: 1.2 m rubber cable, with IP68 special connector
|
Technical Parameters/Model No. |
CWS-01 |
CWS-02/LED |
|
Article No. |
93001 |
93001 |
|
LED option |
---- |
61001/61004 |
|
Voltage (V) |
DC24 |
|
|
Power (W) |
20 |
|
|
Max. jump height (m) |
0.3-1.5 |
|
|
Max. jump frequency (times/min) |
20 |
|
|
Max. size of water drops |
20 |
|
|
Communication mode |
DMX512 |
|
|
Protection grade |
IP68 |
|
|
Max. adjustable angle (°) |
15 |
|
|
Control channel |
2 channels: switching channel |
5-Channel: switching channel, LED channel |
|
Max. working temperature(℃) |
5-37 |
|
|
Standard wire length (m) |
1.2 |
|
|
Installation mode(m) |
Submerged/dry |
|
|
Weight(kg) |
3.5 |
|
|
Flow (L/min) |
0.5 |
|
|
Inlet caliber (inch) |
1/2, rapid connector |
|
|

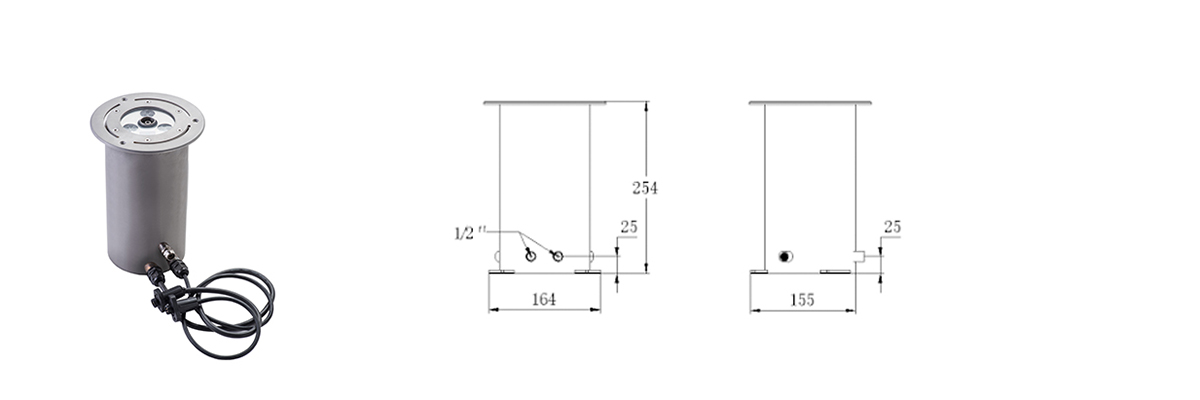

Overall dimensions(mm) |
125x254 |
180x254 |
