LED Hemisphere-shape Nozzle

Publishdate:2018-11-26 Views:201

LED Hemisphere-shape Nozzle

Product Specifications

Material: tempered glass/stainless steel (SUS 304)

Pattern: hemisphere-shape/direct flow

Ejection height: hemisphere-shape 50cm/direct flow 80cm

Adjustable angle: ±15°

Ejection height: 0.3-1.5m

LED: AC12V/3W

Waterproof grade: IP68


Technical Parameters/Model No.
CWYQ-LED-W-40
CWYQ-LED-RGB-40
Article No.
94004
94005
LED drive option
41005
41002
Voltage (V)
DC24V
Power (W)
3
Max. jump height (m)
hemisphere-shape 50cm/direct flow 80cm
Communication mode
DMX512
Protection grade
IP68
Max. working temperature(℃)
5-37
Standard wire length (m)
1.0
Installation mode(m)
Submerged/dry
Weight(kg)
0.1
LED
White/3W
Inlet caliber (inch)
G1 threaded connection

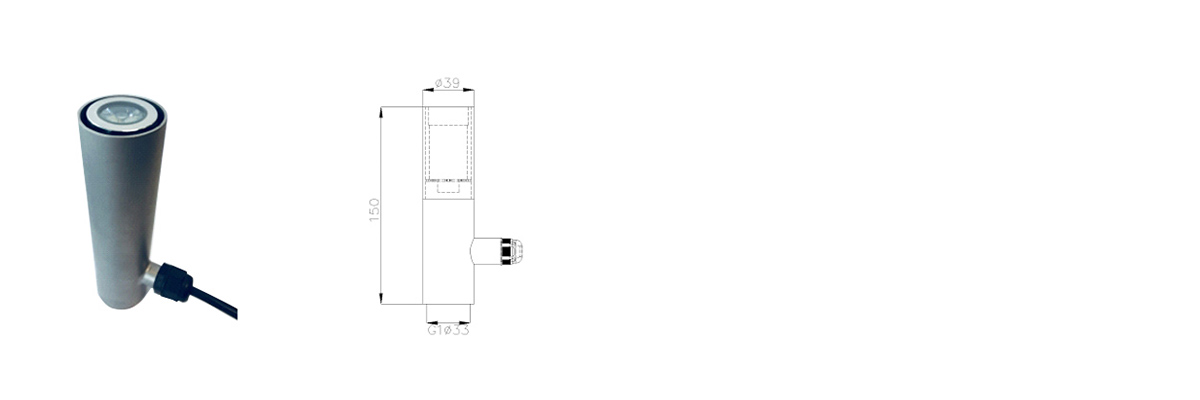

Overall dimensions(mm)
φ39x150
