Mechanical Changeable Nozzle
Publishdate：2018-11-26 Views：1469
Mechanical Changeable Nozzle
●Product Features
Mechanical lifting, compact structure, built-in LED and motor drive
Three LED lamps with adjustable angles
Conforming to IP68 waterproofing code, and available for dry installation
Large scattering angle and rapid response
Standard DMX512 signal control, five channels available
xternal split-type transverse pressure actuator, with patented waterproofing joints
●Product SpecificationsDimension
Energy consumption:
Working voltage:
Working voltage: 24V DC
Material: tempered glass/stainless steel (SUS 304)
Cable length: 1.2 m waterproof rubber cable, with IP68 special connector
Working temperature: 4~35℃
DMX512 channels: 5 (position, speed, red, green, blue)
(support serial DMX address function)
At present, common changeable nozzles are composed by fixed-angle trumpet nozzles and direct flow nozzles, which are separately supplied with water by two independently variable frequency pumps, so that the direct flow spout will be shrunk inwards from the fixed angle of the trumpet nozzle with the increase of pressure, or that the spout will be expanded outwards with the decrease of pressure, thus different patterns will be formed. While CWB series pumps adopt mechanical nozzle structure, in which both the trumpet nozzle and the direct flow nozzle are supplied with water by the same the pump, and the smooth shrinkage and expansion of the spout are achieved by the variable frequency of the pump and the stepping displacement of inner cores of nozzles, while the angle of trumpet nozzle is flexible and adjusted by stepless servo motors, thus various water patterns can be realized.
|
Technical Parameters/Model No. |
CWB-HD4000A |
CWB-HD4000 |
|
Article No. |
91001 |
91002 |
|
LED option |
61003*3+41002 |
|
|
Voltage (V) |
DC24 |
|
|
Main drive motor power (W) |
50 |
80 |
|
Max. mushroom height (m) |
0.5-2.5 |
0.5-3 |
|
Max. mushroom diameter (m) |
0.3-3 |
0.3-4 |
|
Max. ejecting height of direct flow (m) |
0-5 |
0-9 |
|
Communication mode |
DMX512 |
|
|
Protection grade |
IP68 |
|
|
Max. travel of central shaft (mm) |
200 |
|
|
Control channel |
2 channels: switching channel, speed control channel |
|
|
Max. working temperature(℃) |
5-37 |
|
|
Standard wire length (m) |
1.2 |
|
|
Working depth (m) |
0.6 |
|
|
Weight(kg) |
6.5 |
8 |
|
Nozzle caliber (inch) |
21/2 |
|
|
Inlet caliber (inch) |
1 |
|
|

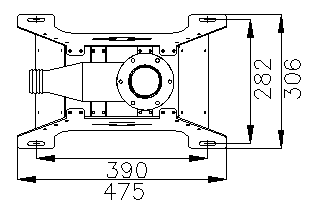

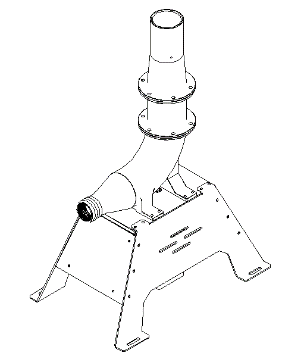

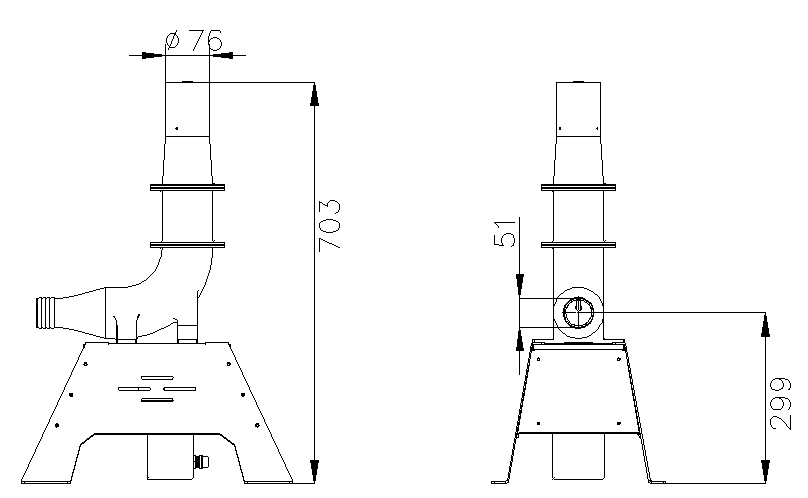

Overall dimensions(mm) |
500x350x600 |
|
