Universal Direct Flow Nozzles

Publishdate：2018-11-26 Views：1436

Universal Direct Flow Nozzles

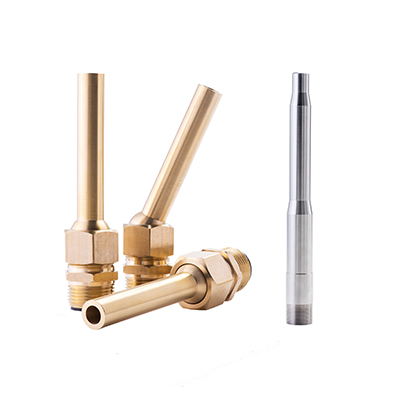

Universal direct flow nozzles are divided into three types: universal afflux direct flow nozzle, adjustable direct flow nozzle and adjustable cannon nozzle. Adjustable direct current nozzles are widely used in fountain pools in various occasions and are essential for musical fountains. These nozzles are fitted with ball joints that can be adjusted within 15 degrees along the vertical direction. Adjustable direct current nozzles can be combined to form different types of ejecting effect. The heights and angles of the spouts can be determined according to the sizes of pools. Features: single nozzle, direct flow. The spout is crystal transparent and smooth, and when the nozzle is vertically installed, a beautiful water dome will be shaped at the top of the spout. The axis of the spout can be adjusted within ±10°, making it convenient for installation and commissioning, and more patterns can be formed.

		SFN 10		SFN 12		SFN 14
Dimensions (Ø*H mm)		29.5 x 91.5		47.3 x 118		47.3 x 118
Spout height		DWB	DDB	DDB	DDB	DWB	DDB
		l/min	bar	l/min	bar	l/min	bar
0.5	[m]	16	0.08	22	0.06	30	0.06
0.06	[m]	20	0.11	26	0.08	38	0.09
1	[m]	22	0.15	32	0.11	45	0.12
1.25	[m]	26	0.19	36	0.14	51	0.15
1.5	[m]	29	0.2	40	0.17	57	0.18
1.75	[m]	32	0.25	44	0.21	61	0.21
2	[m]	34	0.28	47	0.24	68	0.25
2.5	[m]	38	0.36	54	0.3	75	0.3
3	[m]	42	0.44	59	0.35	83	0.37
3.5	[m]	46	0.53	64	0.42	89	0.44
4	[m]	50	0.6	69	0.48	96	0.5
5	[m]	56	0.77	77	0.61	108	0.63
6	[m]	63	0.93	85	0.74	119	0.76
7	[m]			92	0.87	128	0.89
8	[m]			100	1.1	138	1.03
9	[m]					147	1.15
10	[m]					155	1.29
Material		Brass
Weight	[kg]
Order number		40001		40001		40003
