LED-RGB –CWL-24DHALO
Publishdate：2018-11-26 Views：1894

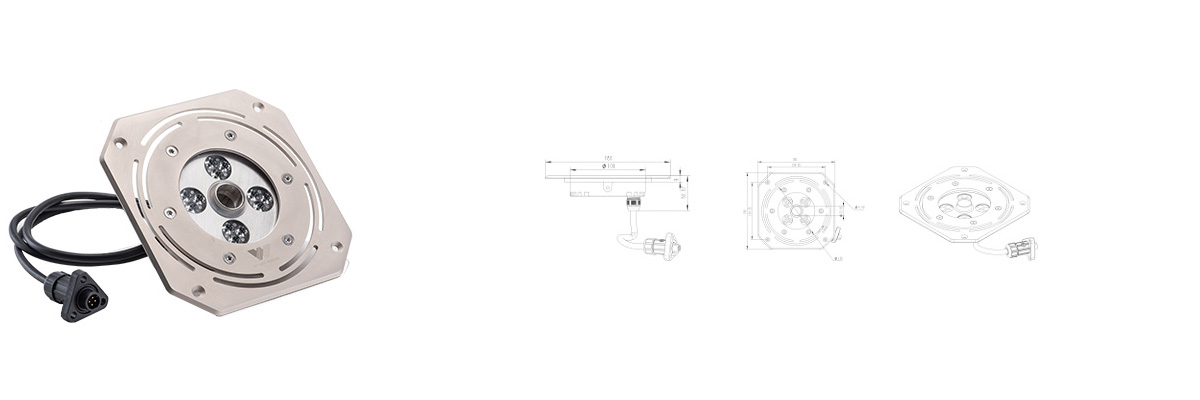

LED-RGB –CWL-24DHALO
The CWL-16DHalo in this series of lamps is suitable for buried installation of dry fountains in squares; it is equipped with a central hole of Ø22mm for the installation of nozzle, and retaining screw holes with an angle of 120° and grooves for water recycling in the panel.CWL-16Halo is applicable for direct flow fountains in the pool, while CWL-16N is applicable for side lighting of fountains or spotlight of water curtains and water walls; All lamps adopt the constant current source uniform drive technology, so that the brightness and color of the lamps in the same control channel are consistent; American CREE LED chips are used to achieve highly pure LED primary colors;12° ultra-narrow beam angle makes all lights concentrating on the spout, and the colors of the lamps do not interfere with each other among nozzles in dense layout; the RGB integrated lens fully mixes the three primary colors at the light source, achieving a highly pure mixing color;DMX512 international standard communication mode is adopted and series connection address is supported; Lamp body is made of 304# stainless steel by means of cast molding, with the waterproofing grade of IP68; the combined sealing of mechanical rubber and glue filling, together with patented mechanical waterproofing joint, guarantees the stability of long-term working in water; The built-in protection device can reduce power when the pump is overloaded, cut off the circuit when the temperature is too high, and shut down the pump when the poles are reversely connected, so that the service life of the pump can be ensured; the designed work time of the pump is up to 100,000 hours, and the LED primary color temperature decay is less than 30% for 50,000 hours.
|
Equipment Name |
HALO LED-01 |
HALO LED-02 |
HALO LED-03 |
|
Technical Parameters/Model No. |
CWL-24D H-R |
CWL-24DH-W |
CWL-24DH-RW |
|
Article No. |
68001 |
68002 |
68002 |
|
Drive Type |
41002/41003 |
41005 |
41004 |
|
Voltage (V) |
DC24 |
||
|
Power (W) |
24 |
24 |
RGB15/W15 |
|
Beam angle (°) |
10 |
||
|
Communication mode |
DMX512 |
||
|
Protection grade |
IP68 |
||
|
Control channel |
3通道：R、G、B |
通道：White |
4通道：R、G、B、W |
|
Self-protection temperature (℃) |
80 | ||
|
Standard wire length (m) |
1.2 | ||
|
Working depth (m) |
1.5 | ||
|
Weight(kg) |
1.6 | ||
|
Overall dimensions(φ*H)mm |
180×50 |
||
●LED Technical Details
Lamps: 12LED large-power light-emitting diodes (American Cree Chip)
Lens: 24o-10o standard beam angle
Self-protection: 16-step thermal protection and reverse polarity
Working temperature:-5℃ ~ 65℃
Communication protocol: DMX512-RGB model
Service life: max. 100,000 hours (conforming to L70, LED primary flux reduction will not be more than 30% for 50,000 hours)
●Energy-saving electrical appliance
Power consumption: 24W (white)-24W(RGB)
Voltage: 12V-24V DC Operating range of 10 ~ 30V, intension is not affected
Cable: 1.5m, chlorine-resistant, ho7rn-f standard (other lengths are customizable)
●Optional items:
If one of the following items needs to be selected, add the appropriate suffix to part of the NR.
316（1.4401）316 (1.4401) stainless steel structure/316
5m cable ho7rn-f:5H
Waterproof connector (lamp ship unwired SCG, if selected) SCG
Dimmable (white model only):DIM
Wide lens- 40 °:F
Point beam lens-11°:S
●Casing
Material (standard): stainless steel AISI 304
Material (standard): stainless steel AISI 304
Polishing (standard): Inferior smooth polishing
Waterproof joint: IP68 special waterproof joint (customizable according to requirements)
Protection glass: tempered heat-resistant safety glass
Protection grade: IP68 waterproof protection certification
Safety class: III
Installation: heavy duty, installation of stainless steel floor
