Three-in-one combined-type stepless variable-speed dimmable pump

Publishdate:2018-11-26 Views:382

Combined-type stepless variable-speed dimmable pump/DMX/DC24V


The three-in-one stepless variable-speed dimmable pumps are divided into two models, COMBO and COMBO PLUS. This series of pumps combine built-in master control, shared low-voltage power supply with LED lamps and DMX communication on the basis of stepless self-regulating pumps to achieve the three-in-one integration of the pump, LED lamps and nozzles. The pump and lamps share the low-voltage power supply; there are 5 DMX control communication channels, 2 channels of which are used for the startup/shutdown and speed regulation of the pump, and the other 3 channels are used for the R, G and B color adjustment of RGB-LED lamps, thus saving the total length of power supply and communication cables of the LED lamps.

The pumps adopt low-voltage DC 24V power supply and conform to international safety standards, totally preventing potential safety hazards such as electric leakage and electric shock; Standard DMX communication allows precise regulation and control, and fast self-regulating response speed. The corresponding DN12MM direct flow nozzles reach the spout height of 0-3.5m and 0-5.5m, with arbitrary regulation of the height and speed; the power of RGB-LED channel is 18W;the casings are made of UV-resistant engineering plastics, and they are insulated and resistant to the acid corrosion of disinfectant in water treatment; the pumps are featured with environment protection and energy conservation, and the total powers of pumps and LED lamps at full loads are 116W and 216W, respectively; the installation modes, submersible installation and pipeline dry installation, are available; their compact sizes make them suitable for dry fountains, amusing interaction and small waterscapes with small installation space.



Equipment name
COMBO-01
COMBOLED-01
COMBO-02
COMBOLED-02
Technical Parameters/Model No.
WSP-CO120
WSP-CO120L
WSP-CO200
WSP-CO200L
Article No.
51005
51006
51007
51008
Drive Type
内置驱动
内置驱动+调光

内置驱动

内置驱动+调光
Voltage (V)
DC24
Power (W)
100
116
200
216

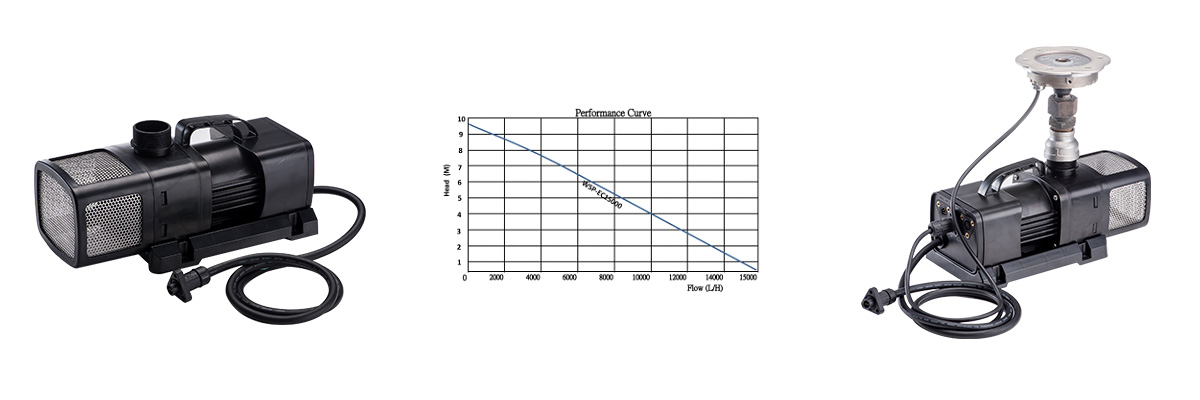

max. Lift (m)
7.8
9.5
max. Flow (l/h)
12000
15000
Spout height (m) 12mm direct flow ejection nozzle
3.0
5.0
Communication mode
DMX512
Protection grade
IP68
Max. revolving speed(r/min)
4500
Control channel
2通道
5通道:水泵2通道,LED 3通道
2通道
5通道:水泵2通道,LED 3通道
Max. working temperature(℃)
5-45
Standard wire length (m)
1.2 1.2 1.2 1.2
Working depth (m)
0.3-5
0.3-5
Weight(kg)
4.5
4.8
Outlet diameter (inch)
11/2
Inlet diameter (inch)
1
Inlet diameter (inch)

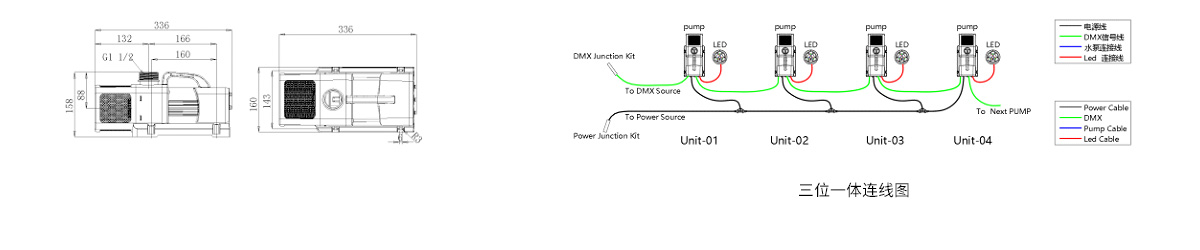

336x160x158
336x160x158
